IP66 Optical Head Wind Turbine Lidar NL750 with Range 50m-750m/NL750 and 10 Measurement Layers

제품 상세 정보:
브랜드 이름: MOLAS
Model Number: NL
결제 및 배송 조건:
Minimum Order Quantity: 1 Set
Packaging Details: 航空箱
Delivery Time: Customize
상세 제품 설명
Range: 50m~750m/NL750 Weight(OpticalHead): ≤23kg
Frequency: 4Hz Wind Direction Range: -180°~180°
IP(OpticalHead): IP66 Maximum Pass Size: 500mm‘500mm
Acceleration Range: -0.5g~0.5g MeasurementLayer: 10
강조하다:

IP66 wind turbine lidar

,

optical head wind lidar 750m range

,

wind turbine lidar 10 measurement layers

Product Description:

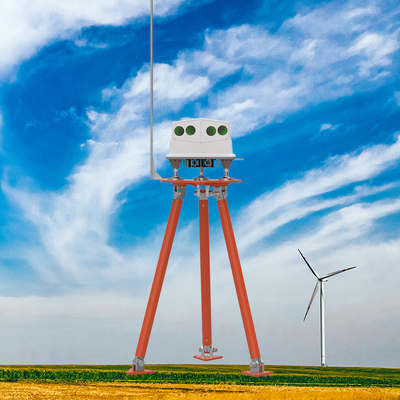

The Wind Turbine Lidar is an advanced product designed for accurate and efficient wind speed measurements in the field of renewable energy. This cutting-edge technology utilizes the principles of Turbine Wake Lidar and doppler wind lidar to provide precise data for wind farm optimization and performance analysis.

With a range of 50m to 750m, the Wind Turbine Lidar offers exceptional coverage for wind speed measurements, ensuring comprehensive data collection for wind energy projects. The NL750 feature enhances the capabilities of the lidar, allowing for in-depth analysis of wind patterns and turbine performance.

The Optical Head of the Wind Turbine Lidar weighs less than 23kg, making it lightweight and portable for easy deployment in various field conditions. This lightweight design ensures flexibility and convenience, enabling users to set up the lidar quickly and efficiently for wind speed measurements.

Operating within a temperature range of -40°C to 60°C, the Wind Turbine Lidar is built to withstand extreme environmental conditions, ensuring reliable performance in harsh weather environments. This durability and resilience make the lidar suitable for a wide range of applications, from arctic regions to tropical climates.

The Wind Turbine Lidar is equipped with a Maximum Pass Size of 500mm x 500mm, allowing for accurate and detailed measurements of wind speed and direction. This large pass size ensures comprehensive coverage of the wind field, capturing precise data for wind farm analysis and optimization.

With a Wind Speed Accuracy of 0.1m/s, the Wind Turbine Lidar delivers highly precise measurements for wind speed analysis. This level of accuracy enables users to make informed decisions regarding turbine placement, operation, and maintenance, leading to improved efficiency and performance of wind energy systems.


Features:

  • Product Name: Wind Turbine Lidar
  • Range: 50m~750m/NL750
  • Wind Direction Accuracy: ±0.5°
  • Wind Speed Range: -50m/s~50m/s
  • Weight(Optical Head): ≤23kg
  • Acceleration Range: -0.5g~0.5g

Technical Parameters:

Survival Wind Speed 70m/s
Frequency 4Hz
Wind Direction Range -180°~180°
Wind Speed Range -50m/s~50m/s
Weight (Data Unit) ≤6kg
Wind Direction Accuracy ±0.5°
Maximum Pass Size 500mm x 500mm
Range 50m~750m/NL750
IP (Optical Head) IP66
Measurement Layer 10

Applications:


Support and Services:

The Wind Turbine Lidar product comes with comprehensive Product Technical Support and Services to ensure optimal performance and customer satisfaction. Our dedicated technical support team is available to assist with any product-related inquiries, troubleshooting, and maintenance. Additionally, we offer training sessions and resources to help users maximize the capabilities of the Wind Turbine Lidar system.
