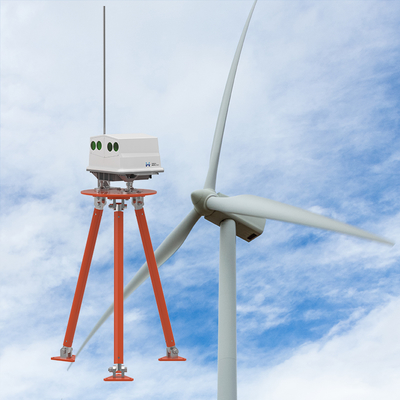

Wind Turbine Lidar Weight OpticalHead ≤23kg Range 50m-750m MeasurementLayer 10 for Wind Energy Site Selection

Wind Turbine Lidar Weight OpticalHead ≤23kg Range 50m-750m MeasurementLayer 10 for Wind Energy Site Selection
Wind Turbine Lidar Weight OpticalHead ≤23kg Range 50m-750m MeasurementLayer 10 for Wind Energy Site Selection

큰 이미지 :  Wind Turbine Lidar Weight OpticalHead ≤23kg Range 50m-750m MeasurementLayer 10 for Wind Energy Site Selection

제품 상세 정보:
브랜드 이름: MOLAS
Model Number: NL
결제 및 배송 조건:
Minimum Order Quantity: 1 Set
포장 세부 사항: 비행 케이스
Delivery Time: Customize
상세 제품 설명
가속 범위: -0.5g ~ 0.5g WeightData Unit): ≤6kg
풍향 범위: -180 ° ~ 180 ° 최대 패스 크기: 500mm'500mm
온도 범위: -40 ° ° -60 ℃ 풍속 정확도: 0.1m/s
풍속 범위: -50m/s ~ 50m/s IP (광학 헤드): IP66
강조하다:

wind turbine lidar optical head

,

wind turbine lidar measurement range

,

wind energy site selection lidar

Product Description:

The Wind Turbine Lidar features an IP66-rated Optical Head, ensuring protection against dust and water ingress, making it suitable for harsh outdoor environments. With a Measurement Layer of 10, this lidar system is capable of capturing detailed wind data at various heights above ground level.

The IP54/65-rated Data Unit of the Wind Turbine Lidar offers robust protection against environmental factors, ensuring the integrity of the data collected. This ensures that the system can withstand challenging weather conditions commonly encountered in wind farm settings.

Equipped with a Maximum Pass Size of 500mm x 500mm, the Wind Turbine Lidar can effectively capture wind speed and direction data across a wide area, providing comprehensive insights for wind farm operators.

One of the key highlights of the Wind Turbine Lidar is its impressive Wind Speed Accuracy of 0.1m/s, enabling precise measurement and monitoring of wind conditions. This high level of accuracy ensures that wind farm operators can make informed decisions to optimize turbine performance and overall energy production.

Whether used for site assessment, power curve verification, or wake effect studies, the Wind Turbine Lidar offers unparalleled capabilities in wind data collection and analysis. Its advanced features and durable design make it a reliable tool for enhancing the efficiency and performance of wind energy projects.


Features:

  • Product Name: Wind Turbine Lidar
  • Maximum Pass Size: 500mm x 500mm
  • Wind Direction Range: -180° to 180°
  • Weight (Optical Head): ≤23kg
  • Frequency: 4Hz
  • Wind Speed Range: -50m/s to 50m/s

Technical Parameters:

Temperature Range -40°C - 60°C
IP(OpticalHead) IP66
Acceleration Range -0.5g to 0.5g
Measurement Layer 10
Frequency 4Hz
Wind Direction Accuracy ±0.5°
IP(Data Unit) IP54/65
Range 50m to 750m/NL750
Maximum Pass Size 500mm x 500mm
Wind Speed Accuracy 0.1m/s

Applications:

MOLAS Wind Turbine Lidar (Model: NL) is a cutting-edge technology designed for various Product Application Occasions and Scenarios in the field of wind energy. This Lidar system, originating from China, offers precise measurements and reliable data for wind farms and other wind energy applications.

With a Wind Direction Accuracy of ±0.5° and a Measurement Layer of 10, the MOLAS NL Wind Turbine Lidar is suitable for a wide range of scenarios. Whether it's for optimizing wind turbine performance, conducting wind resource assessment, or enhancing wind farm operations, this Lidar system is a valuable asset.

The Wind Speed Range of -50m/s to 50m/s ensures that the MOLAS Wind Turbine Lidar can capture data in various wind conditions accurately. Its IP66-rated Optical Head and IP54/65-rated Data Unit provide protection against dust and water, making it durable for outdoor applications.

Whether it's for monitoring wind speeds and directions for wind turbine control or conducting atmospheric research for wind energy projects, the MOLAS NL Wind Turbine Lidar offers flexibility and reliability. The minimum order quantity of 1 set and customizable delivery time make it convenient for different project scales.

Utilizing light detection and ranging (Lidar) technology, the MOLAS NL Wind Turbine Lidar is essential for wind energy applications. Its precise measurements and advanced features make it a valuable tool for optimizing wind farm operations and enhancing overall efficiency.

For wind farm developers, operators, and researchers looking to harness the power of wind energy effectively, the MOLAS NL Wind Turbine Lidar is a top choice. Its accuracy, reliability, and performance make it a trusted solution for various Product Application Occasions and Scenarios.


Support and Services:

Our Product Technical Support and Services for the Wind Turbine Lidar include:

- On-site installation and setup assistance

- Remote troubleshooting and diagnostics

- Regular software updates and maintenance

- Training sessions for operators and technicians

- 24/7 technical support hotline
